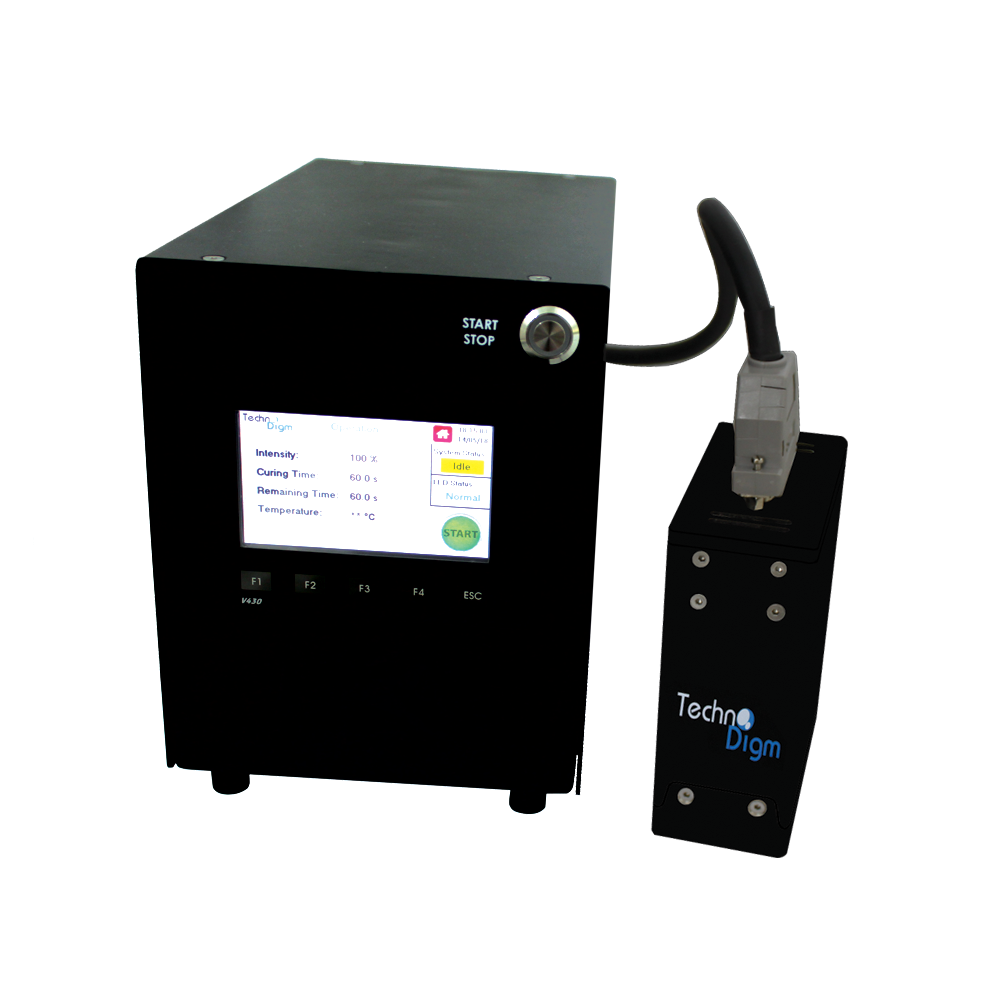

The UVL 1005 LED UV Flood Cure Series has been designed exclusively with an intensity peak of 1200 mW/cm2(UVA) and a fully intuitive touch screen user interface that is easy to operate ensures a high and stable intensity output with consistent curing capabilities.


  • Versatile as a standalone or integrated with current automated system
  • Easy to use and control with small footprint area
  • Stable UV output
  • Maintenance free
  • Green technology, mercury free
  • Low energy consumption
  • Long lifespan
  • Instant On/Off Capabilities
  • Multiple wavelengths and curing area sizes (subject to model selection)

Industry 4.0 Enabled

Industry 4.0 takes the emphasis on digital technology from recent decades to a whole new level with the help of interconnectivity through the Industrial Internet of Things (IIoT). As such, demand for more comprehensive and interlinked real-time data has been a holistic approach to today’s manufacturing industry.

Furthermore, integrating optional features like UV Sensor enables real-time monitoring and auto adjustments of UV intensity ensuring comprehensive curing throughout the manufacturing process and the implementation of smart features such as in-built LED failure detection allows users to identify and address issues instantly before they pose larger risks.

Remote screen control is a feature that allows the supervisory control of one or more UVLED controllers via web browser. Users can monitor and operate the system by simply visiting the IP address of the controller. Standard user interfaces will be displayed once the connection is established between controller and user’s PC. Target and current intensity, curing time, remaining time, and temperature available on the web browser for the user to monitor and control. Users can also start and stop the curing process remotely.


UV Intensity1200mW/cm2
Number of LEDs50 LEDs (10 x 5)
Available LED Wavelength365nm, 405nm, 420nm
LED to LED Distance8.80mm
ConnectionDB – 25
Cooling SystemDC Axial Fan (2 piece, airflow 38m3/h)
HousingStainless Steel, Aluminum
Dimensions (L x W x H)100 x 50 x 130mm
Curing Area (mm)100 x 50
405UVL1005 – 405
420UVL1005 – 420
