UV Radiometer

High-Performance UV Intensity Measurement Radiometer

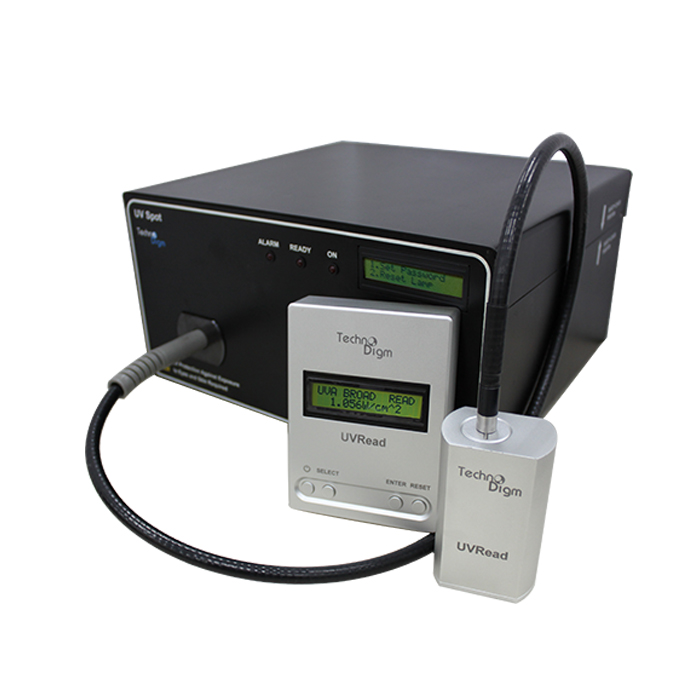

UVRead is a high-performance UVA radiometer designed for quantitative measurement of high-intensity UVA, such as the UV spot-light used for industrial epoxy curing. It comprises a sensor module with a set of detachable standard light-guide adaptors for diameters of 3, 5 and 8 mm, and a reader module connecting to the former for the display of the measurement. This allows accurate measurements of the UV intensity of a curing system. The UVRead measures UV intensity measurement up to 12 W/cm2.

Another main benefit of the UVRead is its high durability and its longer calibration validity (2 years). This results in a lower running cost, hence reducing production costs.

Patented Technology

UVRead is developed through the technical collaboration between TechnoDigm and Institute of Materials Research and Engineering (IMRE), Agency for Science, Technology, and Research (A*STAR).

Based on a unique patented IMRE ferroelectric photovoltaic UV sensor technology, UVRead is built for durability and efficiency.

It has gone through numerous rigorous testing and has the ability to withstand continuous intense UV exposure over a long period of time without exhibiting any significant performance degradation.

Features / Benefits

  • Unique patented technology by IMRE, A*STAR
  • Ensure efficiency of UV Curing System
  • Easily accessible with the ability to connect and read on a laptop
  • Longer calibration validity (2 years)
  • Lower running cost


Spectral RangeFull UVA Range (315 – 380 nm)
Intensity Range20 mW/cm² – 12 W/cm²
Detection Resolution10 mW/cm²
Accuracy+/-5 % Typical, +/- 10% Maximum
Calibration Requirement2 Years Recommended
Operating Temperature0 – 80 °C
Power Source9 V Alkaline Battery or 9 V Power Adaptor
Data-Logger PortRS232
Light Guide Diameter (in mm)3, 5 and 8
Light Source SelectionUVA Broadband or LED 365 nm
Case materialsAluminium
Auto-shutdown2.5 min (Selectable)
Dimension (Reader Module, in cm)12.9 (L) x 9.1 (W) x 2.8 (H)
Dimension (Sensor Module, in cm)5.6 (L) x 3.8 (W) x 9.0 (H)
