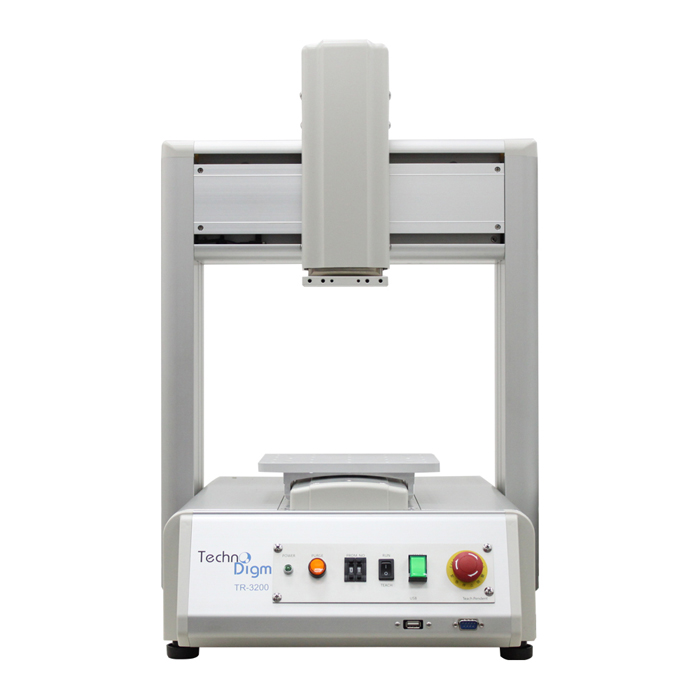

Our 3-Axis Desktop Dispensing Robots Series provide an easy way to automated a wide range of fluid dispensing processes while preserving desktop workspace. The increased efficiency and quality provided by these desktop robots help to improve production output turnover while reducing the number of rejected parts.

  • 3-Axis Series
  • TR3200
  • TR3300
  • TR3500

Features

  • No PC Required
  • Easy Installation
  • Easily Input Dispensing Program With New Designed Teach Pendant
  • Use Edit Software to convert CAD Files to dispensing program
  • Apply 3D Space Dispensing Path

Specification

Model No.TR3200TR3300TR3400TR3500
No.of Axis3333
Working Area200 / 200 / 50 mm300 / 300 / 100 mm400 / 400 / 100 mm500 / 500 / 100 mm
Worktable Load / Tool15 kg / 10 kg15 kg / 10 kg15 kg / 10 kg15 kg / 10 kg
Max. Travel Speed600 / 500 mm/sec600 / 500 mm/sec600 / 500 mm/sec600 / 500 mm/sec
Repeatability± 0.02 mm / axis± 0.02 mm / axis± 0.02 mm / axis± 0.02 mm / axis
Memory Capacity100 programs 4000 points / program100 programs 4000 points / program100 programs 4000 points / program100 programs 4000 points / program
Data StorageUSB Disk USB Disk USB Disk USB Disk
DisplayTeach Pendant LCDTeach Pendant LCDTeach Pendant LCDTeach Pendant LCD
Action MethodPTP & CPPTP & CPPTP & CPPTP & CP
Interpolation3 axes (3D space)3 axes (3D space)3 axes (3D space)3 axes (3D space)
Teaching MethodTeach PendantTeach PendantTeach PendantTeach Pendant
I/O Signal10 Inputs / 10 Outputs10 Inputs / 10 Outputs10 Inputs / 10 Outputs10 Inputs / 10 Outputs
Power SupplyAC 100-220V, 250WAC 100-220V, 300W AC 100-220V, 300W AC 100-220V, 300W
Working Temperature10 – 50°C10 – 50°C10 – 50°C10 – 50°C
Relative Humidity20 ~ 90% no condensation20 ~ 90% no condensation20 ~ 90% no condensation20 ~ 90% no condensation
Dimension (W X D X H)405 x 505 x 735 mm495 x 600 x 750 mm595 x 700 x 750 mm 695 x 800 x 750 mm
Weight42 kg45 kg50 kg55 kg
Stepper MotorMicro Stepping Motor Micro Stepping Motor Micro Stepping Motor Micro Stepping Motor
