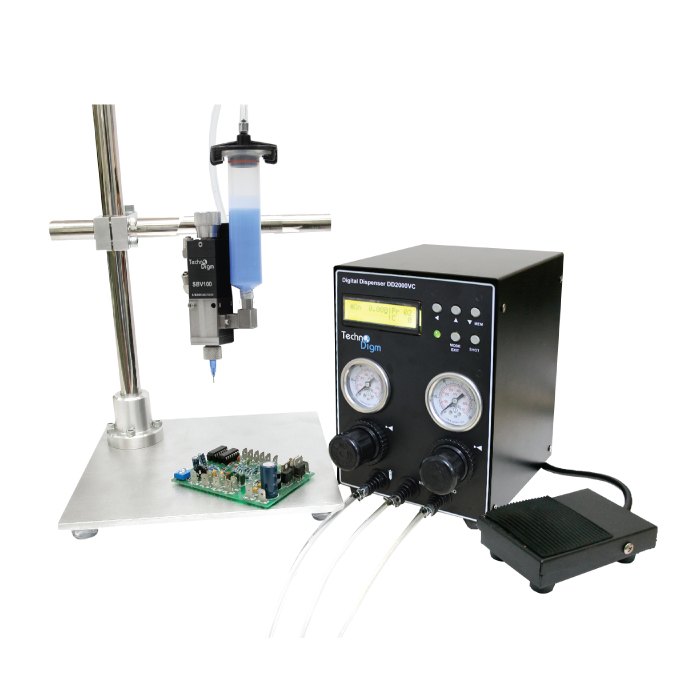

The DD2000VC is specifically designed to be used with single or double-acting valves. Both valve and syringe can be connected to the DD2000VC’s output.
Only one air input is required, resulting in a neat workstation.
Features
- Bright LCD
- 10 Memory locations to automatically cycle 10 self-taught programs
- Auto cycling mode allows sequencing of a self-taught program control operation of valve continuously
- Manual mode allows user to control precise ON/OFF timing of double-acting valve
- Auto mode allows user to pre-set ON/OFF timing for control of double-acting valve
- Convenient operation via foot pedal or front panel button
- Additional adjustable air pressure for constant supply to syringe
- Digital display of precise pressure control
Specifications
| Size | 130 x 180 x 140 mm |
| Dispense Time | 0.005 – 999.999 sec |
| Operation Modes | Manual, Auto, Cycle |
| Internal Memory | 10 Memory Locations |
| Power | 120/220VAC |
| Air Input | 5 – 7 Bar, 70 – 100 PSI |
| Air Output | 0.1 – 7 Bar, 1 – 100 PSI |
