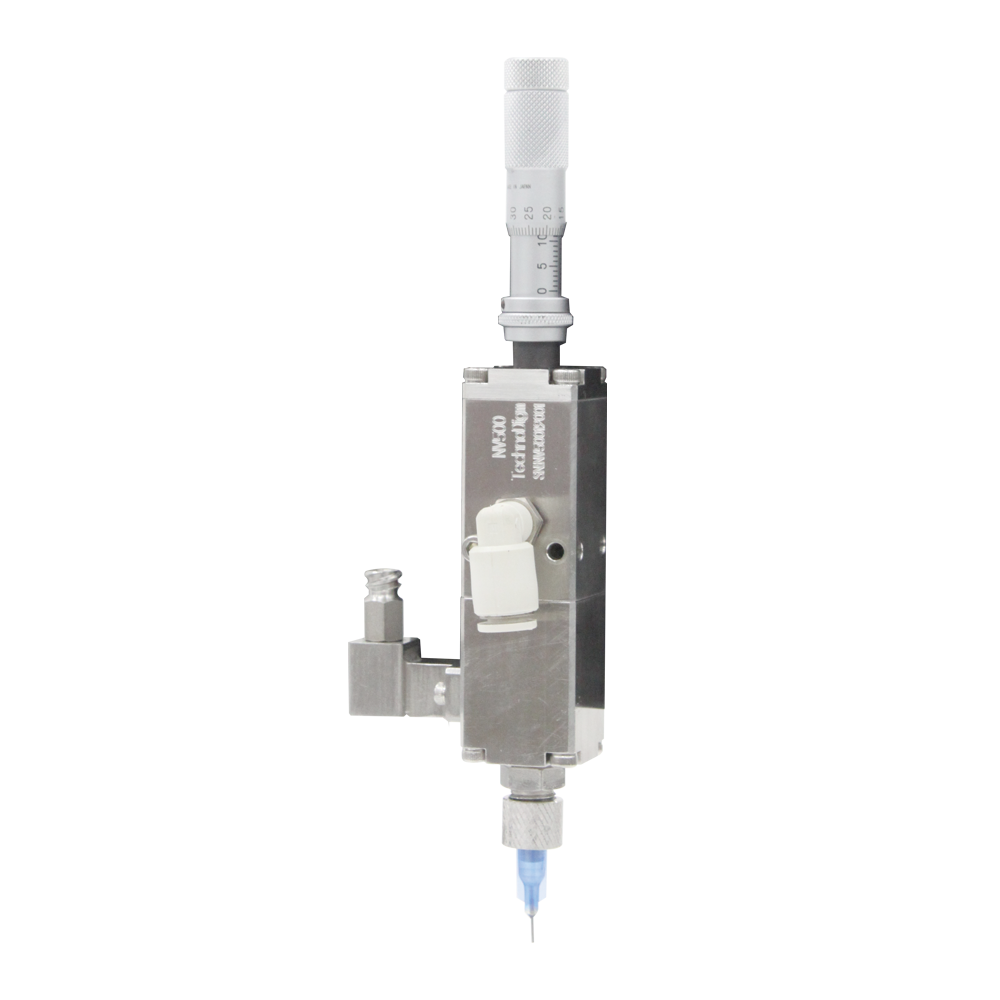

Built to cater to both medical and general use, the NV500 is uniquely designed. It is capable of producing repeated cycles and can control the dispensing of low to medium viscosity fluids quite comfortably, effectively, and with consistent volume. Together with the valve controller by TechnoDigm, the NV500 works remarkably in providing efficient, precise, and reliable dispensing cycles, especially when used in automation systems.
Features
Easy and low maintenance
A positive shutoff system without dripping problems
Extremely convenient and simple to use
Provides consistent dispensing cycles
High temperatures can be tolerated by the seals of the wetted part
Specifications
Operating Type
Piston On / Off
Operating Air Pressure
4.8 Bar
Fluid Delivery Pressure
Max 6.9 Bar
Dispense Tip
All Gauge
Cycle Rate
Exceeds 400 per minute
Range Temperature
5 ~ 50 °C
Weight
370g
Driving Part Materials
Cylinder Body
Aluminium
Piston
SUS304 Stainless Steel
Wetted Part Materials
Chamber
SUS316 Stainless Steel
Chamber Sterilization Temperature
125°C (max)
Connecting Ports
Operating Air Inputs
M5 thread with push-in fitting for 6mm OD tube
Material Inlet
Metal Female Luer & Compression Fitting for OD6 Tube
Material Outlet
Needle Adapter with Lock Nut
